Burger Forming Machines

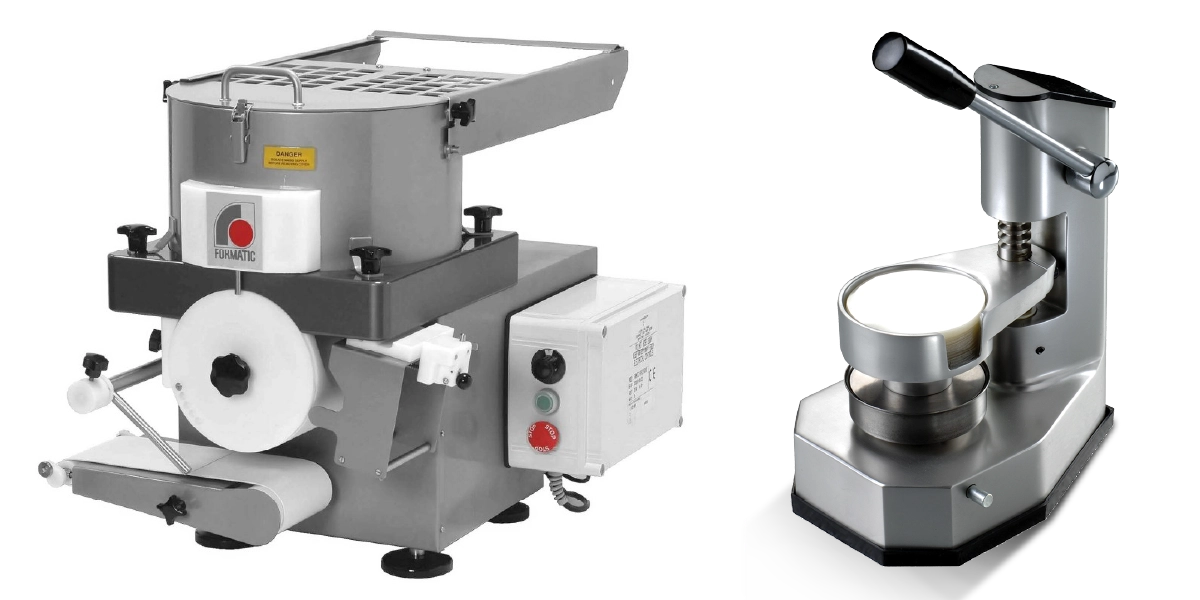

Automatic Burger Forming Machine – Formatic R2200

The Formatic R2200 from Deighton Manufacturing (UK) Ltd is a professional food forming and portioning machine designed for efficient, high-quality burger production. Suitable for small to medium food producers, it can process a wide range of products including meat, fish, potato, vegetable, bakery, cheese, and confectionery mixtures.

Part of the compact R Series range, the R2200 is capable of producing formed products up to 120mm in diameter while delivering outputs of up to 2,200 portions per hour. Variable speed control allows operators to adjust production rates to suit different workflows and product types.

The Formatic system is designed for simple, consistent performance across mixtures with varying textures and consistencies. Synchronised paddles gently compress the mixture into the selected forming drum, helping maintain product quality and appearance. A wire drum scraper assists in smoothly releasing the formed products onto the conveyor for packaging or further processing.

The R2200 is supplied with a 15kg hopper and can be fitted with either a 100mm (4”) or 118mm (5”) forming drum. A wide variety of drum shapes are available, from traditional burgers and rectangles to seasonal or custom shapes, offering flexibility for different product ranges and promotions.

Included Features

• Output capacity of up to 2,200 products per hour
• Variable speed control for adjustable production rates
• 15kg hopper capacity
• Available with 100mm or 118mm forming drums
• Auto paper attachment fitted as standard
• Conveyor discharge system for efficient handling
• Suitable for multiple food product types and consistencies

The integrated automatic paper feed places a burger paper beneath each product during forming, improving handling and simplifying packaging. Compatible burger papers are available separately.

Technical Specifications

• Length: 700mm
• Width: 600mm
• Height: 640mm
• Weight: 95kg
• Power: 550W
• Electrical supply: 220–240V
• Hopper capacity: 15kg
• Production output: Up to 2,200 per hour

Compatible burger papers are manufactured from 73gsm paper, feature a 6mm locating hole, and are supplied in boxes containing 45 reams of 500 papers each.

Swedlinghaus Aberg Lever Burger Press

The Swedlinghaus Aberg Lever Burger Press is a reliable manual burger forming machine designed for fast and consistent burger production. Ideal for butcher shops, restaurants, and commercial kitchens, it delivers uniform results while remaining simple and easy to operate.

Constructed from heavy-duty anodised aluminium with stainless steel food-contact components, this burger press is built for durability, hygiene, and long-term professional use. A non-slip rubber base provides added stability during operation, while the easy-clean design helps reduce preparation time.

Available Sizes

• 4 Inch / 100mm
• 5 Inch / 130mm
• 6 Inch / 150mm

Features

• Quick and efficient manual burger forming
• Heavy-duty anodised aluminium construction
• Stainless steel meat-contact parts
• Stable non-slip rubber base
• Easy to clean and maintain
• Suitable for butcher shops, restaurants, and food preparation areas

Specification

• Weight: 6kg
